Home > All products > Components > Switches > Push Buttons > SPB16-DN1-xxx-xxx Dome Push Button 16 mm

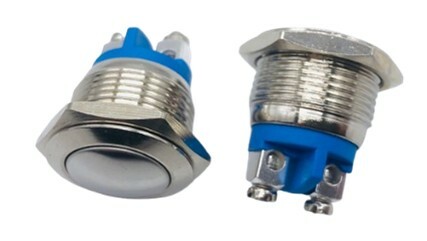

SPB16-DN1-xxx-xxx

Dome Push Button 16 mm

None Illumination, LED
Screw Terminals

Read more
SPB16-DN1-xxx-xxx

Dome Push Button 16 mm

None Illumination, LED
Screw Terminals

Read more

Downloads

  • SPB\Datasheet\SPB16-DN1-xxx-xxx.pdf

Specifications

Push Button Material Stainless steel , Aluminum oxide brass nickel-plated, Brass chrome-pla
Front diameter (mm) 17.8
Threat (mm) 8
Installation Length (mm) 22
Button surface Dome
Configuration 1NO
Operation Momentary
Switch Rating 5A/ 250VAC
Protection grade IP65/ IK10
Diameter 16
Operation Temperature (°C) -10~+25
Termination Style Screw Terminals

Description

Dome Push Button Switch 16mm

Products

Part. nr.

Pins

Pitch (mm)

Product Status

Info

Free sample

Part. nr.

SPB16-DN1-0M0-240

Pins

Pitch (mm)

Product Status

Info

Free sample
