Home > All products > Components > Switches > Push Buttons > SPB30-FP3-xxx-xxx Flat Push Button 30 mm

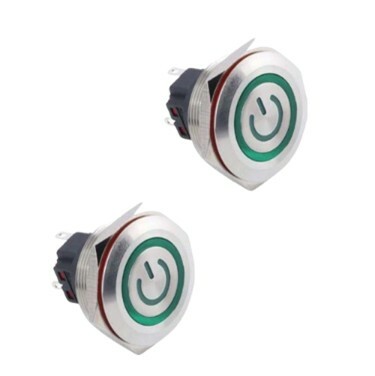

SPB30-FP3-xxx-xxx

Flat Push Button 30 mm

Power Illumination, LED
Solder Terminals

Read more
SPB30-FP3-xxx-xxx

Flat Push Button 30 mm

Power Illumination, LED
Solder Terminals

Read more
Sample added

Downloads

  • SPB\Datasheet\SPB30-FP3-xxx-xxx.pdf

Specifications

Push Button Material Stainless steel , Aluminum oxide brass nickel-plated, Brass chrome-pla
Front diameter (mm) 32.8
Threat (mm) 12
Installation Length (mm) 34
Button surface Flat
Configuration 1NO1NC, 2NO2NC
Illumination Power Symbol
Operation Momentary, Latching
Switch Rating 5A/ 250VAC
Protection grade IP67/ IK10
Diameter 30
Termination Style Solder Terminals

Description

Illuminated Push button switch 30mm Flat Type
