Home > All products > Components > Terminal Blocks > Pluggable > STB2040H-7.62-4 Horizontal Plug 7.62 mm

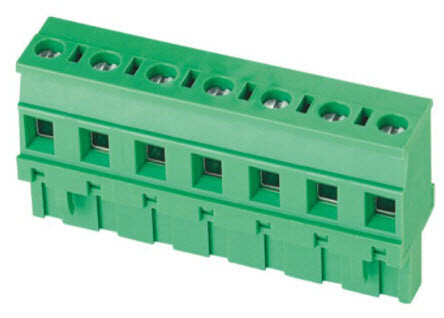

STB2040H-7.62-4

Horizontal Plug 7.62 mm

Rising Cage contacts
2-24 poles

Read more
STB2040H-7.62-4

Horizontal Plug 7.62 mm

Rising Cage contacts
2-24 poles

Read more
Sample added

Specifications

Pitch (mm) 7.62
Pins 4
Product Status Active
Type Plug
Color Green
Length 12.6
Width 28.68
Height 26
Operation Temperature (°C) -40~+105
Wire Cauge 24~12
UL Current A 15
UL Volt (Vdc) 300
IEC Current (A) 10
IEC Voltage (Vdc) 300
Rows 1
Termination Style Rising Cage
Orientation Horizontal

Description

STB2040H-7.62-4 is a Terminal Block Horizontal Plug Header with a 7.62 mm pitch.
The connector is available from 2 up to 24 poles.

Related products

STB1001V-7.62-XX Vertical Plug 7.62 mm
