Discover the SAP05H Series, a powerful 5W AC/DC converter!
19-12-2025
Looking for a compact and efficient AC/DC solution for industrial environments?

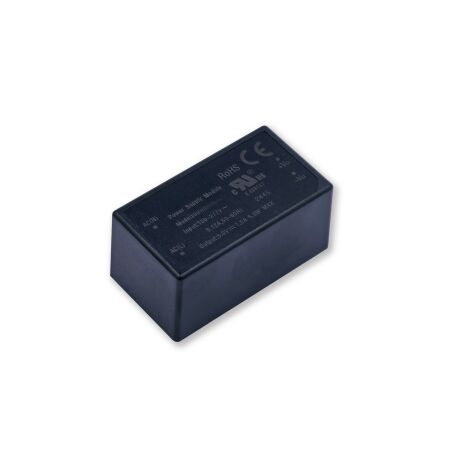

Discover the SAP05H Series, a powerful 5W AC/DC converter built for reliability and performance.
With high isolation, excellent EMC compliance, and zero need for external components, the SAP05H is ideal for demanding applications in automation, control, and embedded systems.
Key Features:
- Rated Power: 5W
- Input Voltage: 85–305 VAC, 47–63 Hz (universal)
- Output: Regulated single output
- Isolation Voltage: 4000 VAC
- Efficiency: 74% to 81% (typical)
- Standby Power: ~0.1W
- Operating Temperature: -40°C to +85°C
- Protections: Over voltage, over current, short circuit
- External Components: None required
- Certifications: IEC/EN/UL62368-1, OVC II, EN60335-1, EN61558-1, UKCA
- EMC Compliance: CISPR32, EN55032 Class B
- RoHS Compliant
- 3-Year Warranty
Compact, efficient, and certified for safety and EMC compliance. Ready for your next industrial or commercial design.
…
