Introducing the ERF6016 SMA PCB Mount Connector
10-02-2026

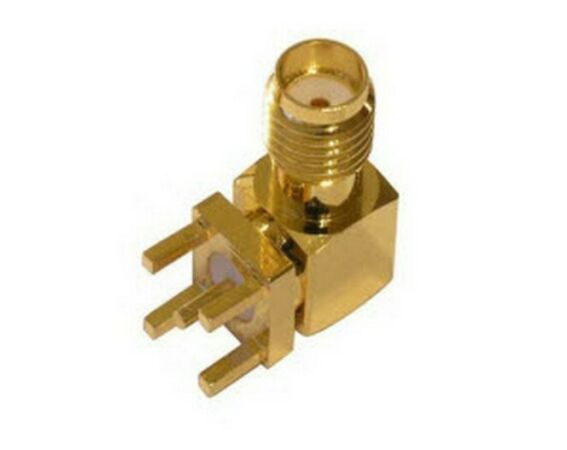

Summit Electronics introduces the ERF6016 SMA Female Right Angle PCB Mount Connector, designed for reliable RF applications where performance, durability, and precision are essential.
The ERF6016 is suitable for RF connections and antenna interfaces in a wide range of wireless systems. Thanks to its right angle PCB-mount design, it offers flexibility in compact PCB layouts while maintaining excellent signal integrity.
With a 50 Ω impedance, a frequency range up to 6 GHz, and a VSWR of ≤ 1.5, this connector ensures stable and consistent RF performance. The connector body is made of gold plated brass and combined with a PTFE (Teflon) insulator, providing mechanical robustness and reliable electrical characteristics.
Key specifications
- SMA Female, right angle
- PCB mount
- Impedance: 50 Ω
- Frequency range: 0 – 6 GHz
- VSWR: ≤ 1.5
- Gold plated brass body
- PTFE (Teflon) insulator
The ERF6016 is well suited for applications such as wireless communication systems, RF modules, and antenna connections.
For more information or customization options, please contact us or go to our ERF6016 page here.
…
