Introducing the ERF6024 SMA PCB Mount Connector
03-02-2026

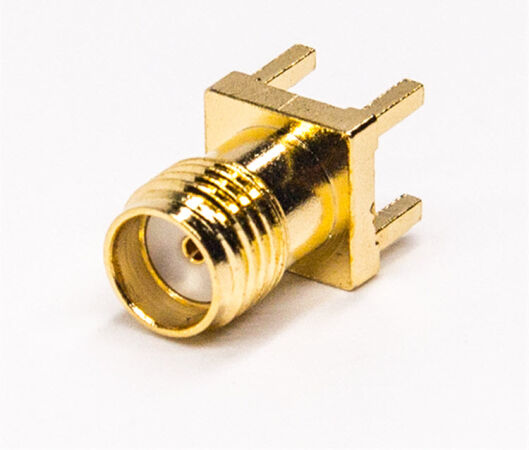

Summit Electronics expands its RF connector portfolio with the ERF6024 SMA Female Straight PCB Mount Connector, a reliable solution for RF applications requiring stable signal transmission and a compact design.
The ERF6024 features a straight PCB-mount configuration, making it ideal for applications where a direct RF connection is required on the PCB. It can be used for RF signal connections as well as antenna interfaces in various wireless devices.
This connector offers a 50 Ω impedance, supports frequencies up to 6 GHz, and achieves a VSWR of ≤ 1.5, ensuring consistent RF performance. The gold plated brass body combined with a PTFE (Teflon) insulator guarantees durability and dependable electrical insulation.
Key specifications
- SMA Female, straight
- PCB mount
- Impedance: 50 Ω
- Frequency range: 0 – 6 GHz
- VSWR: ≤ 1.5
- Gold plated brass body
- PTFE (Teflon) insulator
The ERF6024 is suitable for use in wireless communication equipment, RF modules, and antenna connections.
For ordering information or technical support, please contact us or go to our ERF6024 page here.
…
