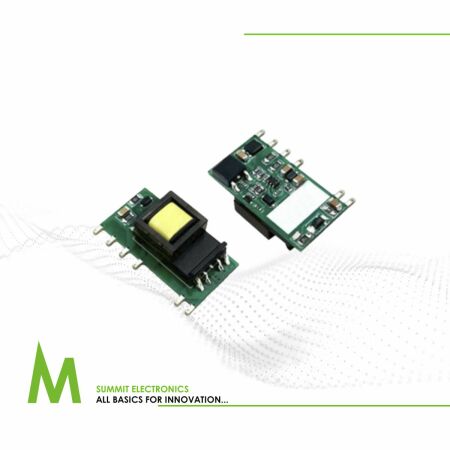

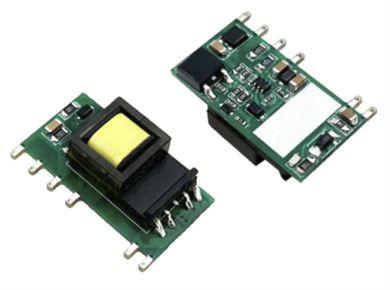

Meet our SAW05S Series, a 5W open-frame converter!
30-12-2025
Need a compact AC/DC solution that handles extra-wide input voltage? Meet the SAW05S Series, a 5W open-frame converter built for energy meters and demanding industrial environments.
With a universal input range up to 528VAC, class II reinforced insulation, and high EMC performance, this SIP-mountable module offers efficiency and protection in critical applications.
Key Features:
- Rated Power: 5W
- Input Voltage: 90–528 VAC, 47–63 Hz
- Output: Regulated single output
- Isolation Voltage: 4000 VAC
- Efficiency: 70% to 79% (typical)
- Standby Power: 0.1W
- Operating Temperature: -40°C to +85°C
- Installation: SIP (single inline package)
- Protections: Over current, short circuit
- Certifications: IEC/EN/UL62368-1, EN60335-1, EN61558-1, UKCA
- EMC Compliance: CISPR32, EN55032 Class B (with external components)
- RoHS Compliant
- 3-Year Warranty
The SAW05S offers the perfect mix of wide voltage tolerance, high isolation, and efficient performance for energy metering and industrial systems.
…
