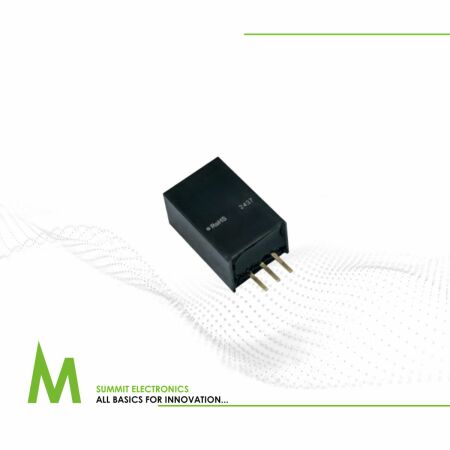

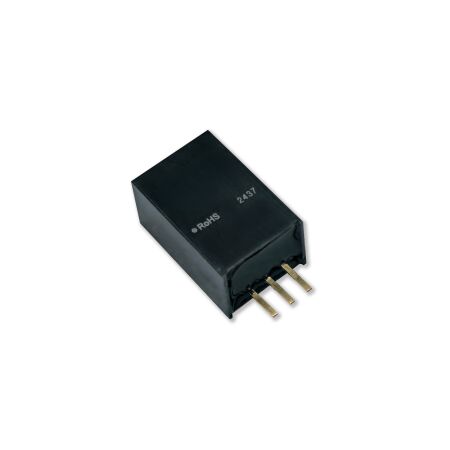

Meet our SDX20S Step-Down Switching Regulator!
16-12-2025
Designed as a high-performance, drop-in replacement for LM78xx linear regulators, the SDX20S offers exceptional efficiency and thermal performance. No heatsink required.
Key Features:
- Rated Current: 2 A Max
- Input Range: 4.5 – 36 VDC
- Output: Regulated single output
- Efficiency: Up to 96%
- Package: Compact SIP3
- No Load Input Current: Only 0.2 mA
- Ripple & Noise: Very low
- Short Circuit Protection: Continuous
- Operating Temp: -40°C to +85°C ambient
- Compliance: UL/IEC/EN 62368-1, RoHS
- Warranty: 3 Years
Ideal for energy-efficient applications in compact systems where space, heat dissipation, and reliability are critical.
…
