Home > All products > Atlas Motion > Atlas Engine > SAE23H2C-056-000 Atlas Engine NEMA 23 56mm Encoder

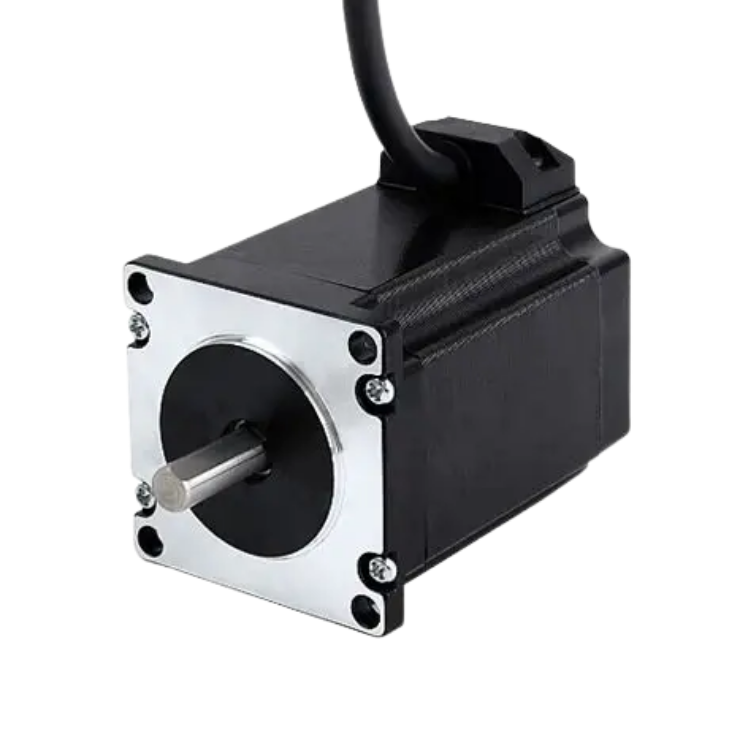

SAE23H2C-056-000

Atlas Engine NEMA 23 56mm Encoder

Atlas Engine Stepper motor Closed Loop Nema 23 -56 mm

Read more
SAE23H2C-056-000

Atlas Engine NEMA 23 56mm Encoder

Atlas Engine Stepper motor Closed Loop Nema 23 -56 mm

Read more
Sample added

Downloads

  • Motion\Datasheet\Brochure Atlas Control & Atlas Engine.pdf
  • Motion\Datasheet\Summit Atlas Engine Nema 23 Datasheet.pdf

Specifications

Length 55
Step Angle 1.8
Step Angle Accuracy 0.05
Number of phase 2
Rated Current 3
Resistance / Phase 0.71
Inductance / Phase 2.4
Holding Torque 1.1
Rotor Inertia 280
Dielectric Strength 500 V AC 1 minu
Insulation Resistance 100 M Min (500 VDC)
Shaft Radial Play 0.02 mm
Shaft Axial Play 0.08 mm
SM Cable Length 300

Description

Atlas Engine Stepper motor Closed Loop Nema 23 -56 mm
