Home > All products > Atlas Motion > Atlas Engine > SAE34H2-145-000 Atlas Engine NEMA 34 145mm
SAE34H2-145-000

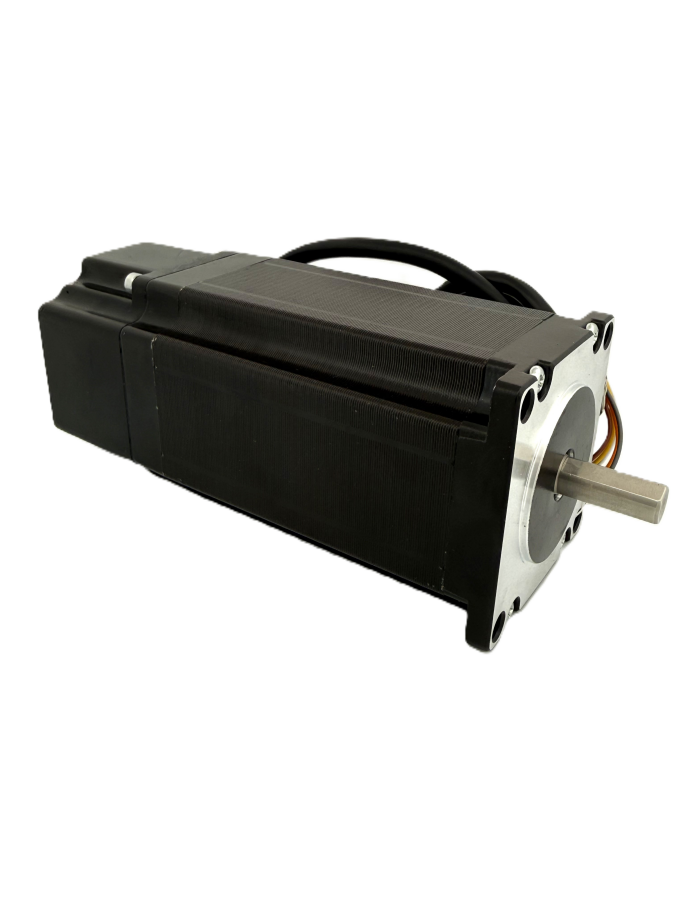

Atlas Engine NEMA 34 145mm

Atlas Engine Stepper motor Nema 34 - 145 mm

Read more
SAE34H2-145-000

Atlas Engine NEMA 34 145mm

Atlas Engine Stepper motor Nema 34 - 145 mm

Read more
Sample added

Downloads

  • Motion\Datasheet\Brochure Atlas Control & Atlas Engine.pdf

Specifications

Length 145
Step Angle 1.8
Step Angle Accuracy 0.05
Number of phase 2
Rated Current 6
Resistance / Phase 0.35
Inductance / Phase 4.4
Holding Torque 10.5
Rotor Inertia 4100
Dielectric Strength 500 V AC 1 minu
Insulation Resistance 100 M Min (500 VDC)
Shaft Radial Play 0.02 mm
Shaft Axial Play 0.08 mm
SM Cable Length 300

Description

Atlas Engine Stepper motor Nema 34 - 145 mm

Products

Also Available

Part. nr.

Pins

Pitch (mm)

Product Status

Info

Free sample

Part. nr.

SAE34H2-114-000

Info

Free sample

Part. nr.

SAE34H2-145-000

Info

Free sample
